Micro Thermal Imaging Scope
for Pistol & Rifle.
Weighs a mere 6.35oz (180g), the Mars mini is designed for both pistols and rifles. Featuring a high-resolution 640×512 @ 12μm thermal sensor, a round touchscreen, and built-in laser rangefinder.
HIGH-SENSITIVITY THERMAL SENSOR @ 640×512
Precision beyond the pixel.
Equipped with a 640×512 @ 12μm thermal imaging detector and NETD <20mK, Mars mini delivers crisp thermal clarity, revealing subtle temperature differences critical in tactical and hunting scenarios.
SHUTTERLESS THERMAL IMAGING
Instant imaging. No mechanical parts.

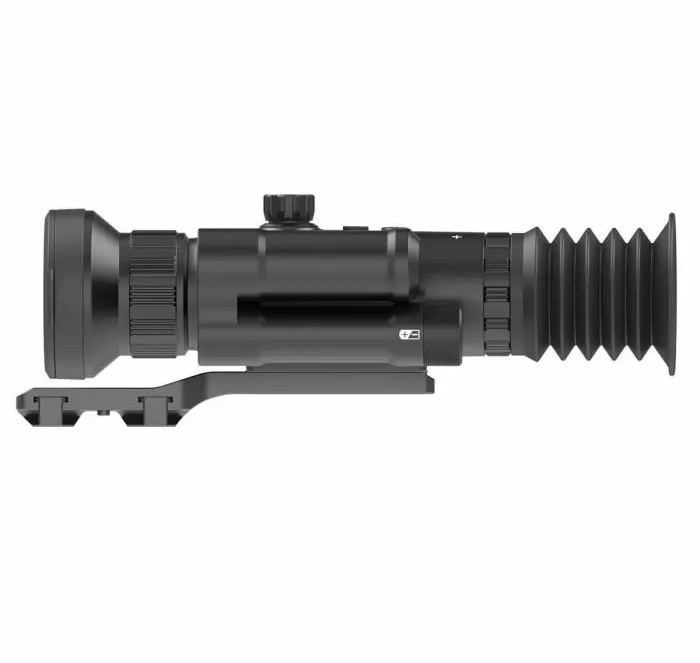

Built on the same core tech as the Mars MT1000LRF, Mars mini features a shutterless design with no moving parts—immune to shock and vibration, delivering “no blind” continuous imaging in a smaller, lighter platform.
60HZ REFRESH RATE
Track fast. Shoot faster.
A smooth 60Hz frame rate ensures real-time response when tracking moving targets - essential for high-speed engagements or fast-moving game.
Interchangeable Lenses for Versatility
Switch lenses with ease.

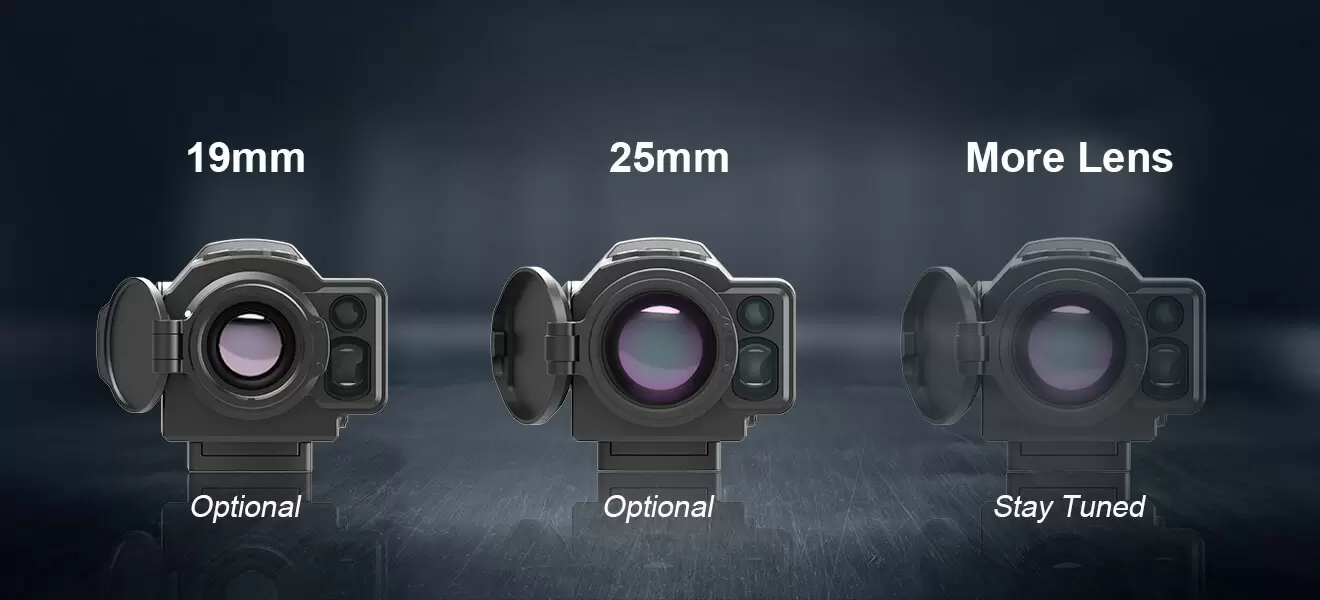

Choose the ideal lens for your mission. Mars mini supports two interchangeable lenses - 19mm (0.95×) and 25mm (1.6×) base magnification, providing quick adaptability for CQB or longer-range targeting.
TOUCHSCREEN WITH AUTO BRIGHTNESS
Faster control.
Mars mini features a 720×720 pixels circular touchscreen, simulating the intuitive feel of a traditional optic. Effortlessly control palettes, reticles, scene modes and zoom with a tap. An ambient light sensor automatically adjusts screen brightness for optimal visibility and power efficiency. When gloves or conditions make touch control difficult, intuitive top buttons provide reliable operation.
DEDICATED EYEPIECE TUBE
Enhanced viewing experience.
The Mars mini includes a proprietary eyepiece tube, delivering enhanced clarity and a comfortable viewing experience. Use it as a handheld thermal monocular or mount it on your firearm for a seamless dual-use solution.

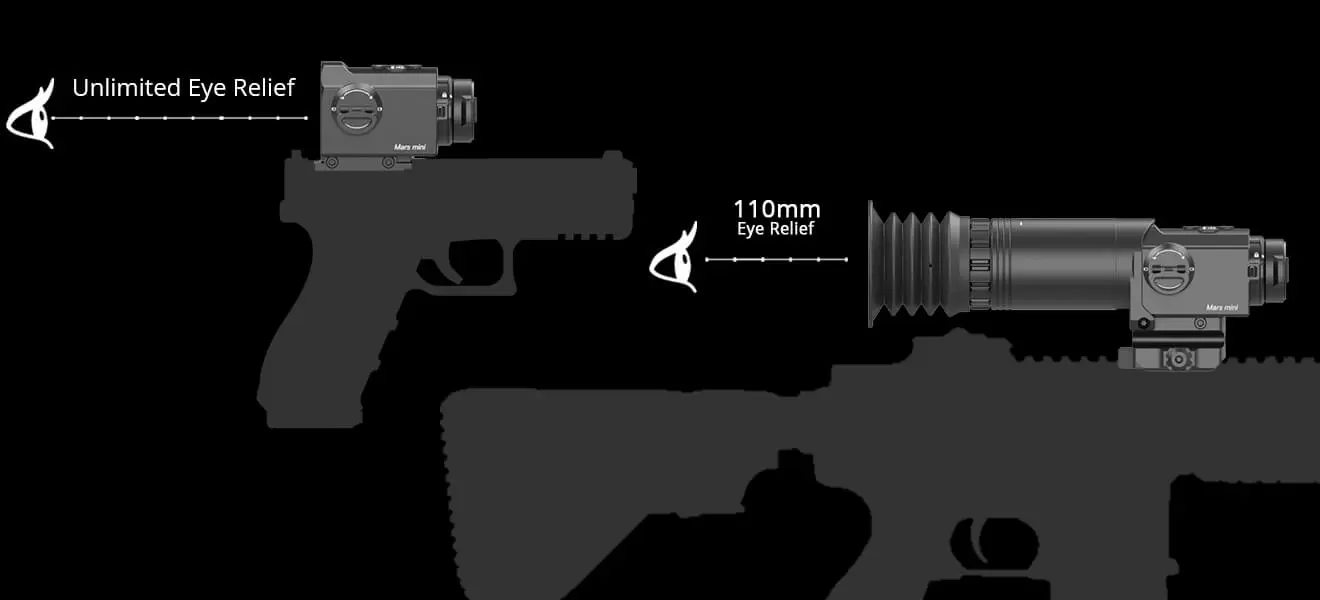

Dual-Mode Eye Relief
Optimized for both rifles and pistols.
When fitted with the dedicated eyepiece tube for rifle use, the Mars mini provides a comfortable 110 mm eye relief for a stable, precision sight picture. Remove the eyepiece and mount the mini like a red-dot on a handgun, eye relief becomes unlimited, giving you instant target acquisition and true red-dot-style flexibility.

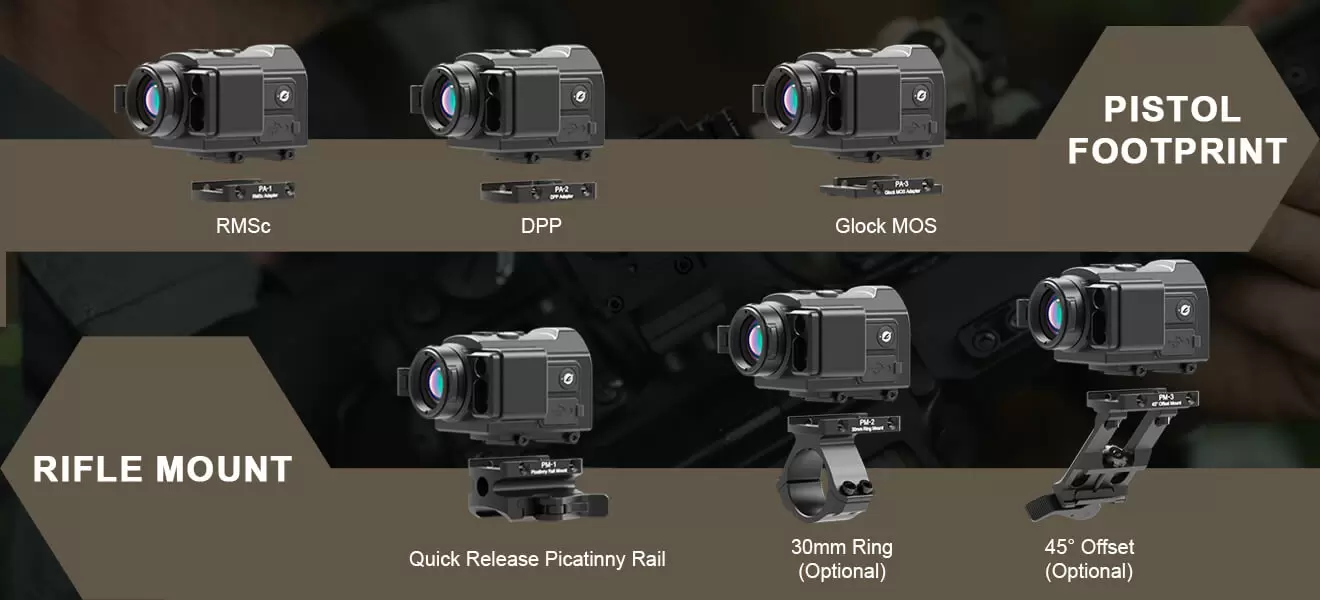

MULTI-MOUNT COMPATIBILITY
Use it your way.

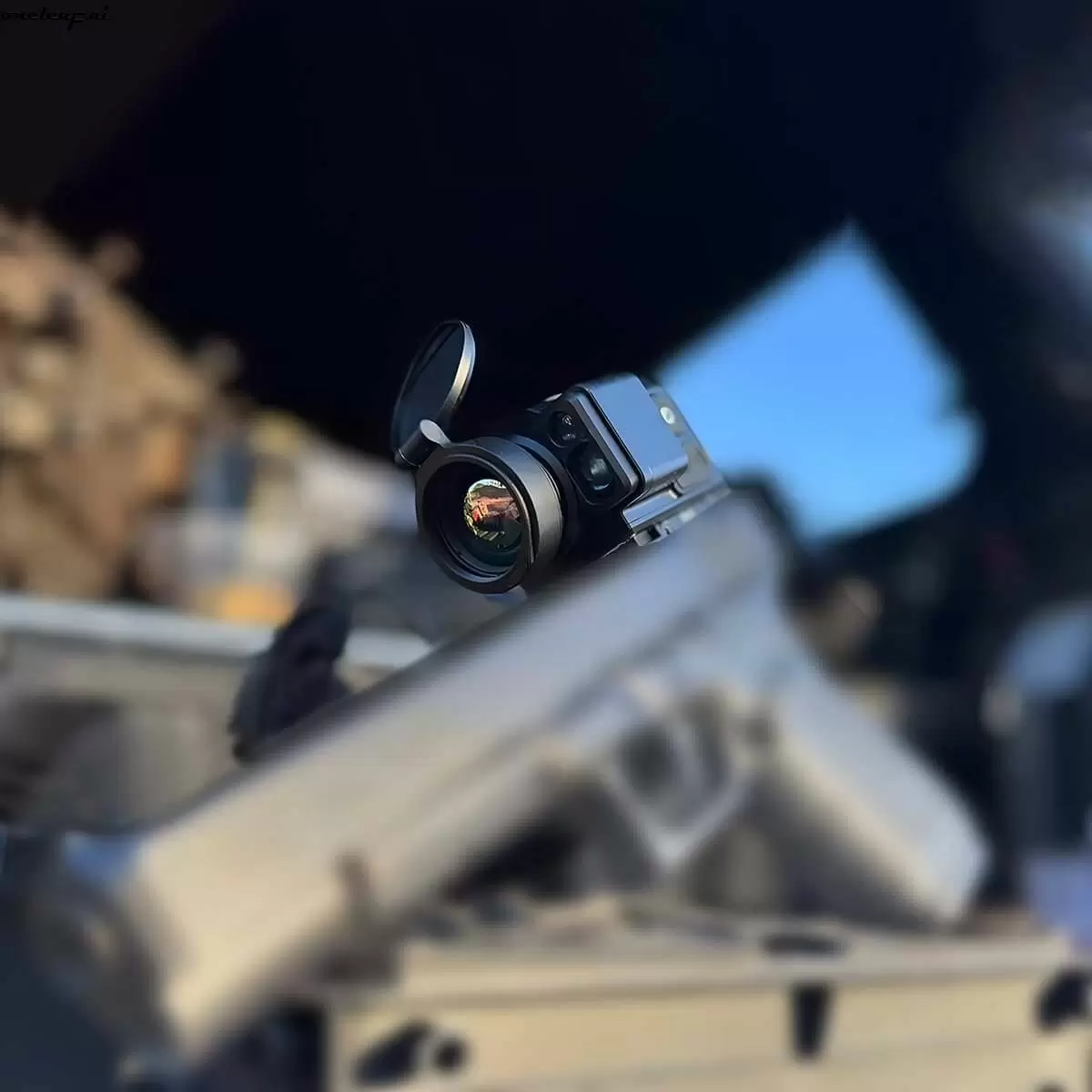

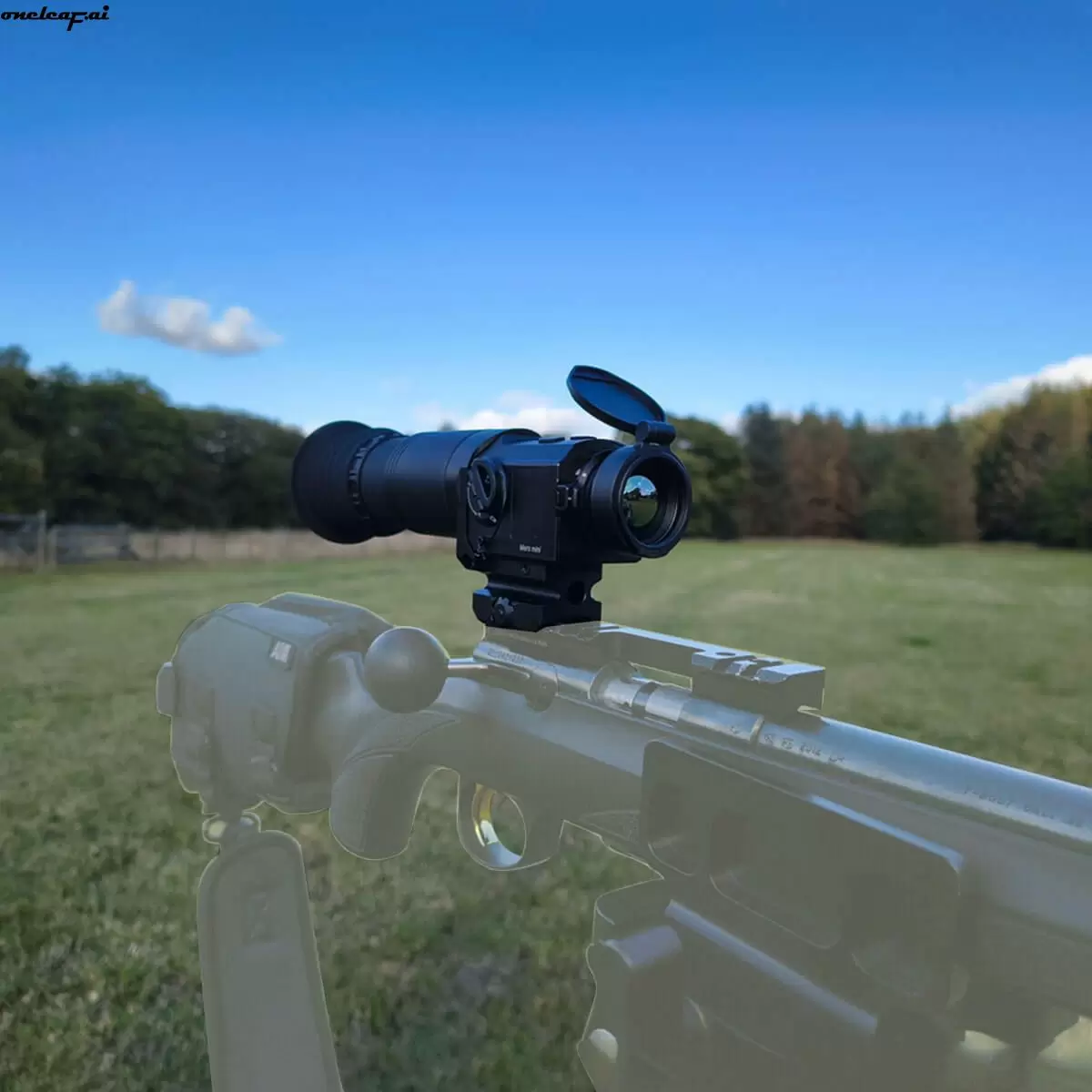

Built with a standard RMR footprint, it mounts directly to most pistols and seamlessly integrates with rifle setups using optional mounts (Picatinny; 30mm ring, 45° offset, etc.)
BUILT-IN LASER RANGEFINDER
Accurate distance measurement for safer and successful shots.
The integrated 1500 meters laser rangefinder gives you instant distance readouts for safer, more accurate long-range shots, perfect for precision shooting and situational awareness.
BALLISTIC CALCULATOR
No guesswork, just precision.

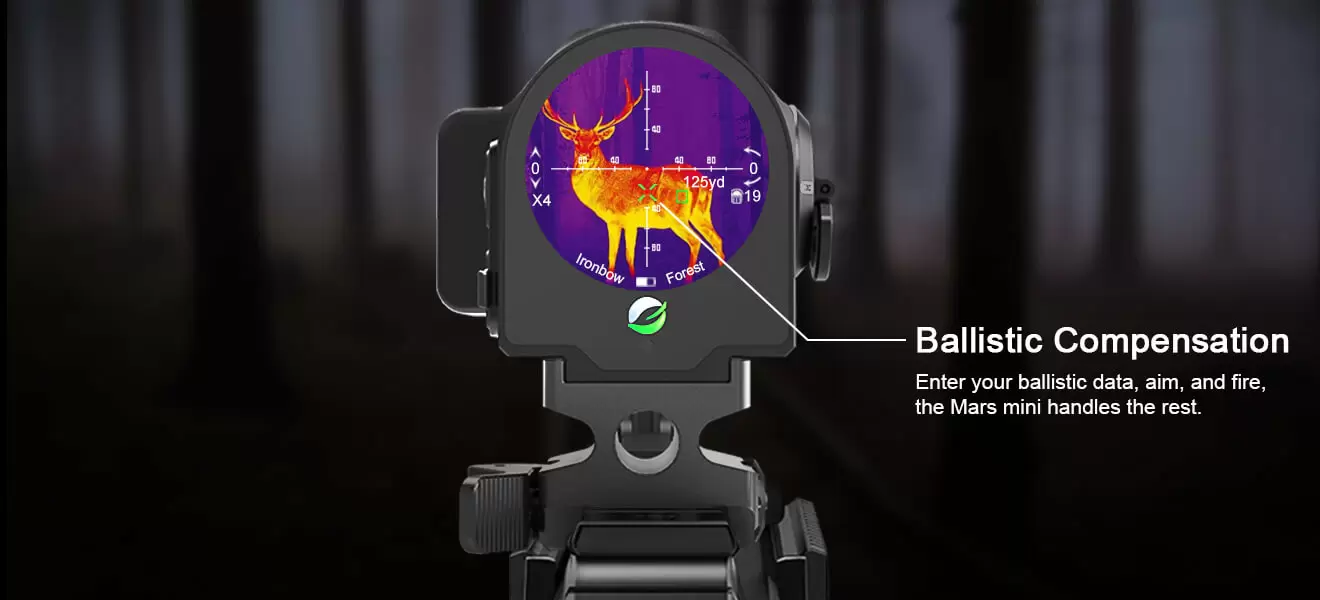

The built-in ballistic calculator uses laser-measured distances to recommend the perfect aiming point, ensuring pinpoint accuracy for long-range shots.
FREEZE FRAME ZERO
Fast, intuitive, and reliable.
With Mars mini's freeze frame zero, you can capture a static frame, align your reticle to the impact point, and lock your zero instantly. This eliminates error caused by hand movements, making zero faster and easier than ever.

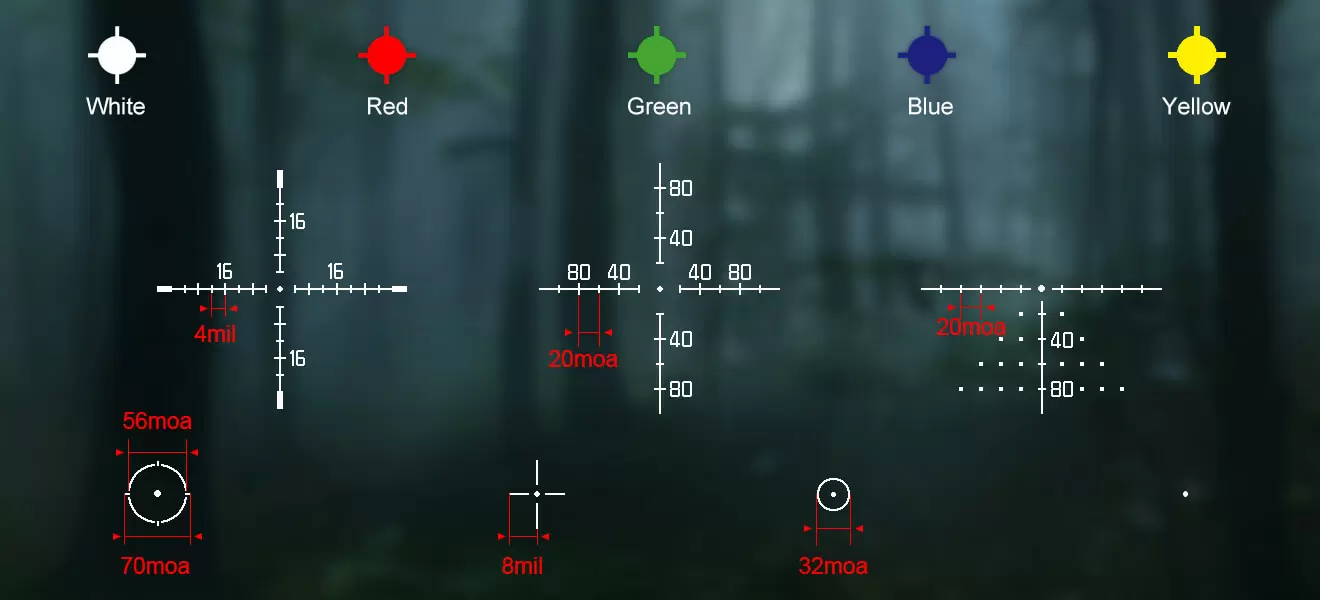

MULTI RETICLE SYSTEM
Tailored aim for every shot.
Choose from multiple reticle shapes and colors, including classic MOA dot and circle combos-optimized for both short-range and long-range engagements.

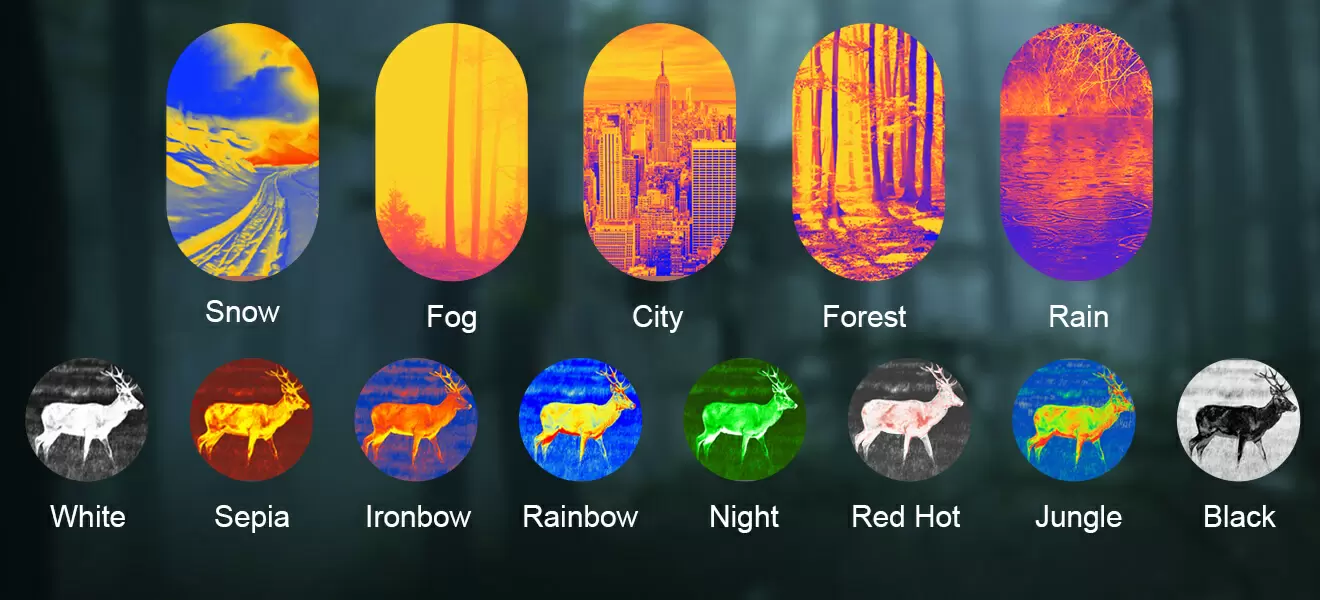

CUSTOMIZABLE VIEWS FOR ANY ENVIRONMENT
8 Color Palettes & 5 Scene Modes.
Choose from 8 thermal palettes, including Black Hot, White Hot, Red Hot, Ironbow, Rainbow, Night, Jungle, and Sepia for the ideal contrast in any hunting condition. Adapt instantly to changing weather with 5 scene modes: Snow, Fog, City, Forest, and Rain.
SHOOTING-ACTIVATED VIDEO RECORDING
Never miss the moment.
The Mars mini records video automatically when you fire, ensuring every successful shot is captured without distractions. Audio recording is supported, relive and share your most exciting hunts with ease.

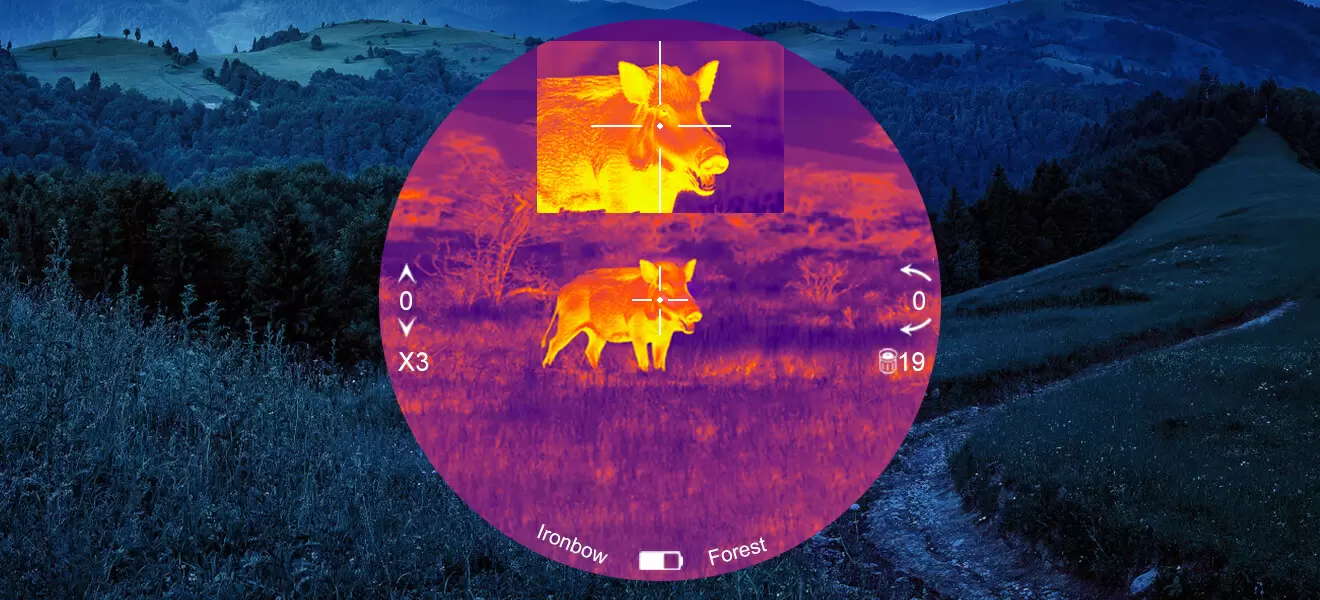

PICTURE-IN-PICTURE MODE (PiP)
Elevate your targeting precision.
The Mars mini’s Picture-in-Picture (PiP) mode provides a 2x magnified image of the reticle area at the top of the display. Zoom in on targets while maintaining situational awareness.

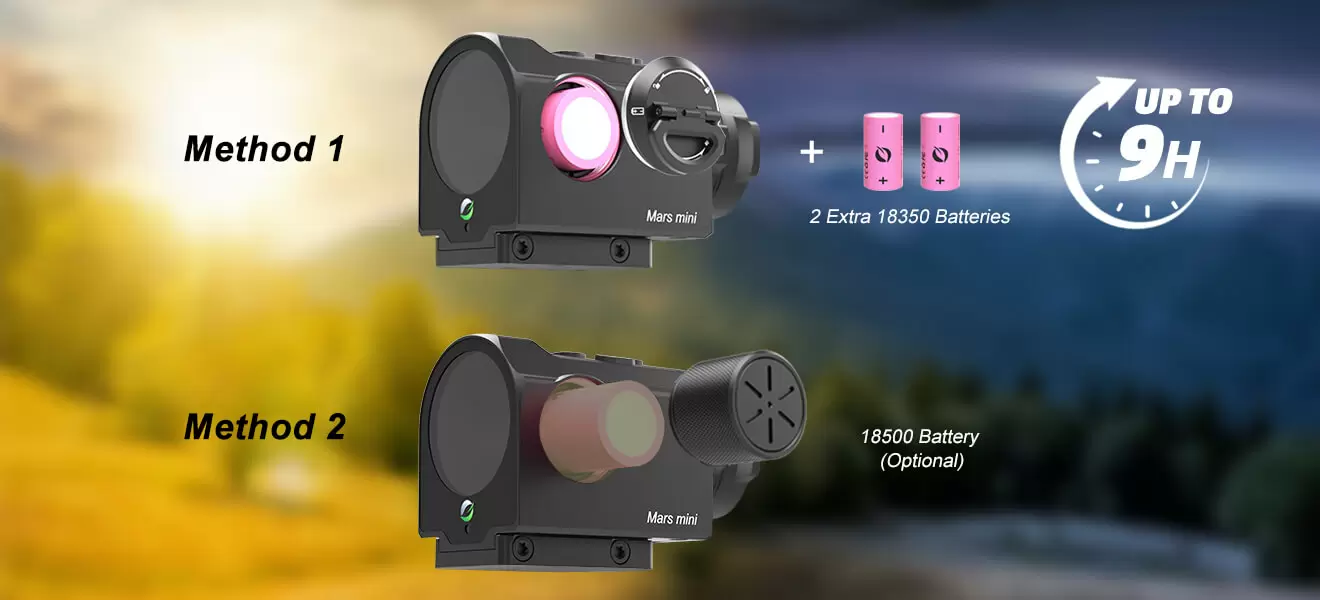

RECHARGEABLE & REMOVABLE BATTERY
Dual power option, extended runtime.
Powered by a rechargeable and removable 18350 battery with 3 hours per cell. We include two spare batteries, totaling up to 9 hours of operation in the field. Quick swaps keep you in the hunt without interruption. For even longer missions, the package includes an 18500 battery cap, giving you the option to upgrade your power supply.
I
PX6 WATERPROOF & DUSTPROOF
Performance you can count on, rain or shine.

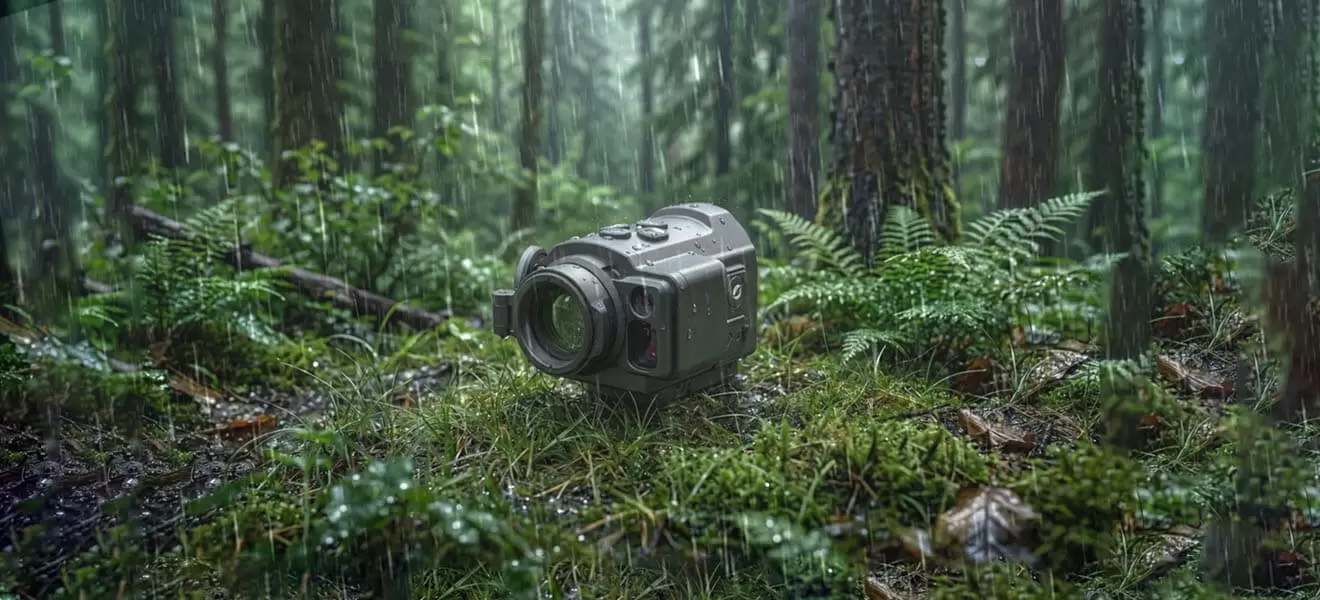

With an IPX6 rating, the Mars mini thermal imaging riflescope is fully protected against water and dust, ensuring reliable operation in any weather condition.

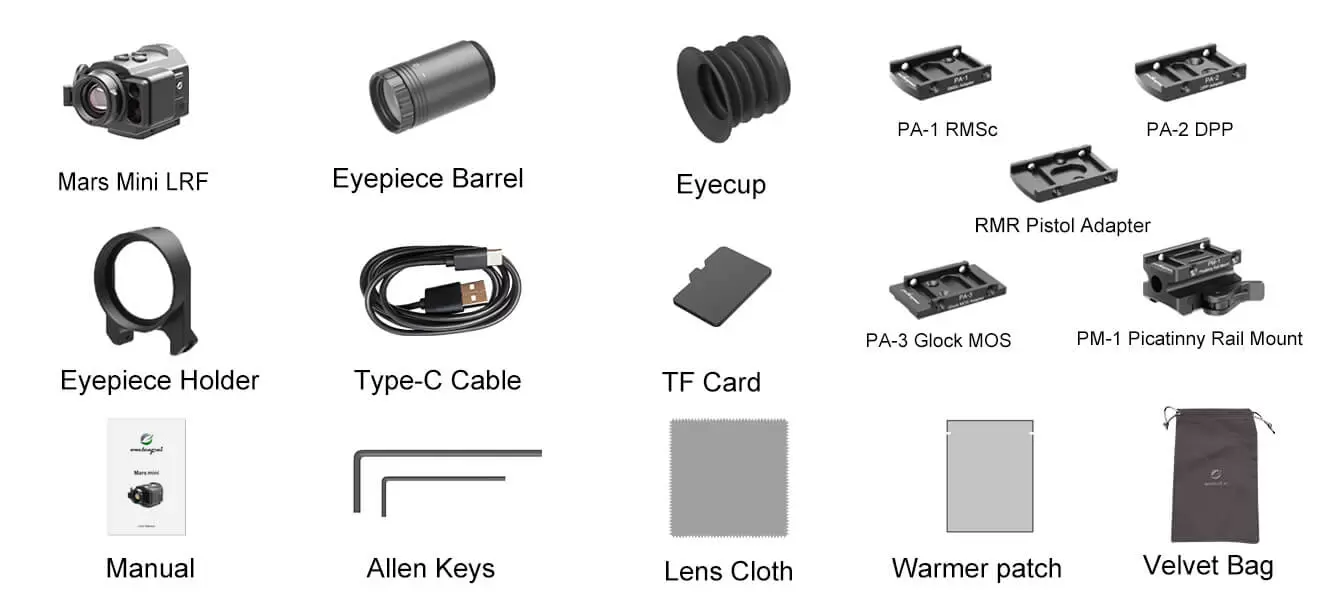

What's in the Box

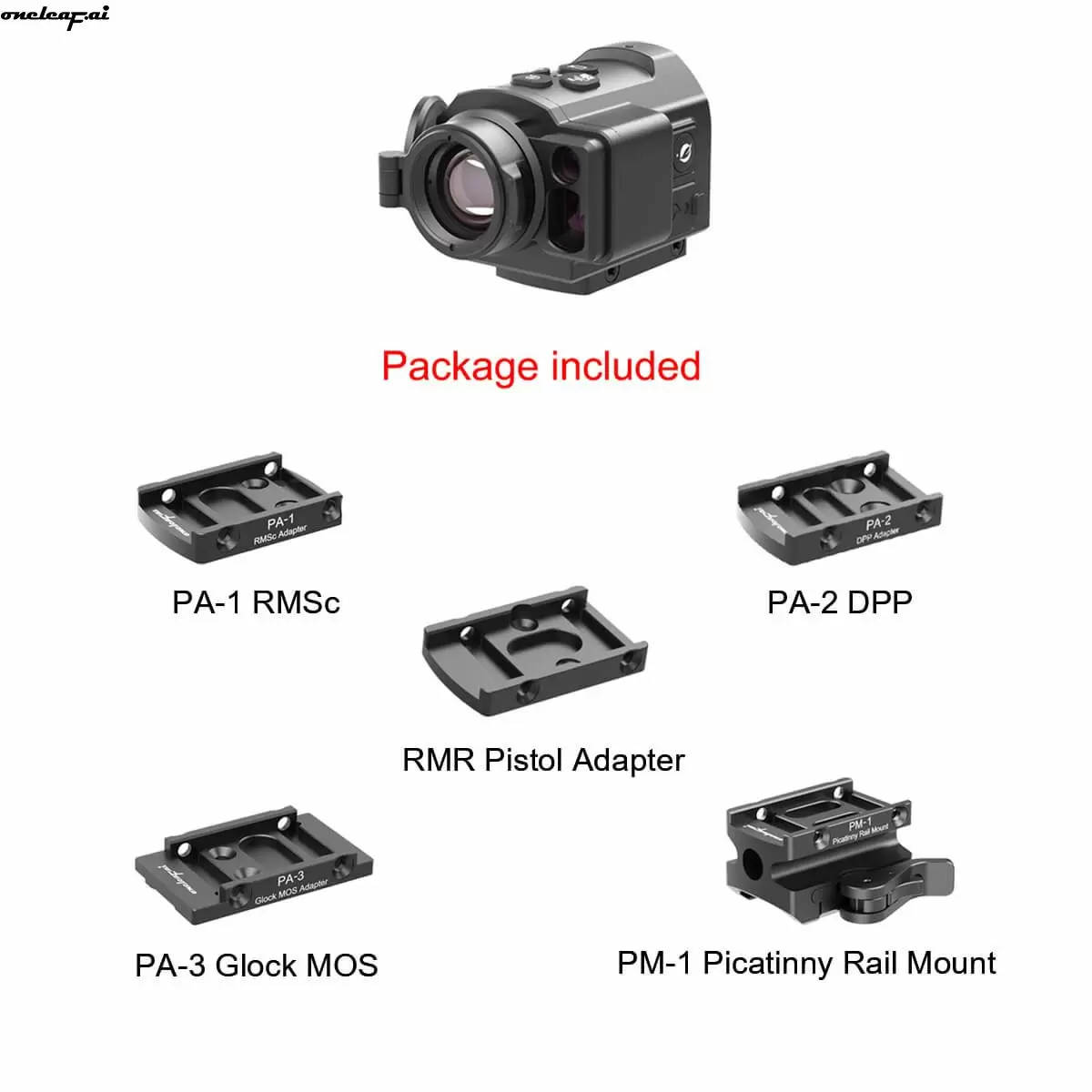

1 x Mars mini (main body), 19mm/25mm Lens (optional), 1 x PA-1 RMSc Adapter, 1 x PA-2 DDP Adapter, 1 x PA-3 Glock MOS Adapter, 1 x PM-1 Picatinny Rail Adapter, 1 x RMR Pistol Adapter,1 x SD Card, 1 x Eyecup, 1 x Eyecup Barrel,1 x Eyepiece Holder, 1 x Type C Cable, 1 x Warmer Patch(for zeroing), 1 x Allen Keys, 1 x Lens Cloth, 1 x Velvet Bag.
